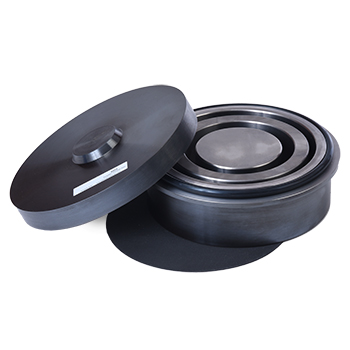

8504 - Tungsten Carbide Grinding Container

$12556.00

Grinding container lined with tungsten carbide. Dish and lid are steel shells with tungsten carbide inserts; puck and ring are solid tungsten carbide. 6.9 in diameter x 3.2 in high, 29 lb (17.5 cm x 8 cm, 12.5 kg). Nominal volume 240 mL, recommended grinding load 20-60 mL. Includes puck, ring, dish with O-ring gasket, and lid.

Ideal for grinding dry and brittle samples in the 8500 ShatterBox® and the 8530 ShatterBox®. Sturdier and heavier than steel so it grinds faster with less contamination. Long wearing and efficient with a high resistance to abrasion.

Capable of grinding nearly anything dry and brittle in the 8530 Enclosed Shatterbox®.
The most effective and versatile grinding container offered.
Recommended as a long-term “best buy”.
High resistance to abrasion.
Long-wearing and very high efficiency.
Substantially harder and heavier than steel so it grinds faster and with less contamination.
Suitable for slurry grinding.
Nominal volume 240 mL.
Recommended grinding load 20 – 60 ml.
Typical composition: Major Elements – W, C, Co; Minor Elements – Ta, Ti, Nb.
Hardness: Mohs 8 1/2 + Knoop 1400 - 1800.

Overall Outer Diameter	6.9 in.
Overall Height	3.2 in.
Sample Capacity - Grinding	20 to 60 mL
Typical Sample Size	50 g
Resistance to Abrasion	High
Major Elements	W, C Co
Minor Elements	Ta, Ti, Nb
Durability	Long-wearing
Hardness	Mohs 8.5+, Knoop 1400 to 1800
Comparative Efficiency	Very high
Slurry Grinding	Yes
For Use With	8530 Geno/Grinder

8504 Brochure
