5004 - Tungsten Carbide Lined Grinding Vial Set, 5 mL

• Compatible with the 8011 Multiple-Sample Adapter for grinding samples in the 8000M Mixer/Mill® and 8000D Mixer/Mill®.
• High resistance to abrasion.
• Long-wearing and very high efficiency.
• Suitable for slurry grinding.
• Volume: 5 mL.
• Recommended mixing load: 3 mL.
• Recommended grinding load: 0.5-1.5 mL.
• Typical composition: Major Elements – W, C, Co; Minor Elements – Ta, Ti, Nb.
• Hardness: Mohs 8 ½ + Knoop 1400 - 1800.
• Effective and versatile grinding vial for mixing and grinding samples.

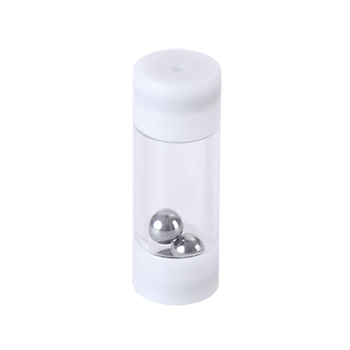

Crush, grind, and mill various materials. Vial is 3/4 in. diameter x 21/8 in. long (19.1 mm x 54 mm). Methacrylate center cylinder, acetal caps with tungsten carbide insert, and tungsten carbide grinding ball. Includes two slip-on Delrin® caps with tungsten carbide inserts, six disposable methacrylate center cylinders and two 5/16 in. (7.9 mm) tungsten carbide grinding balls.

Replacement parts include: 5004A Tungsten Carbide Grinding Ball, 5/16 in.(7.9 mm) 5004C Methacrylate Center Cylinder 5004E Delrin® End Cap without Tungsten Carbide Insert 5004I Tungsten Carbide Insert 5004W Delrin® End Cap with Tungsten Carbide Insert
