Small Tungsten Carbide Grinding Container
Small Tungsten Carbide Grinding Container

8508 - Small Tungsten Carbide Grinding Container, 80 mL

$5219.00

Part Number: 8508

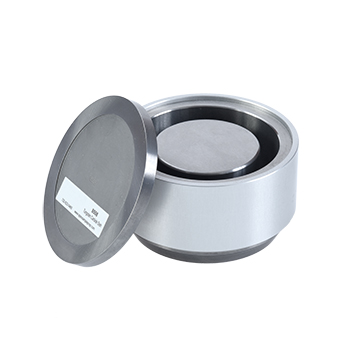

Small grinding container with puck, dish, and lid all made of solid tungsten carbide. Dish has reinforcing aluminum band.

  • Capable of grinding nearly anything dry and brittle in the 8530 Enclosed Shatterbox®.
  • Must be used either one or three at a time with 8507R Small Grinding Container Rack.
  • High resistance to abrasion.
  • Long-wearing and very high efficiency.
  • Nominal volume 80 mL.
  • Recommended grinding load 5 – 20 ml.
  • Typical composition: Major Elements – W, C, Co; Minor Elements – Ta, Ti, Nb.
  • Hardness: Mohs 8 1/2 + Knoop 1400 - 1800.


Dish-shaped grinding container swings in a tight high-speed circle to crush samples to analytical fineness. Typical samples include cements, soils, ceramics, slag, rocks, minerals, ores, pharmaceuticals, sulfur pellets, and dried plant material. Recommended grinding load: 25 to 20mL:Typical sample size: 15 g. Dimensions are 9.2 cm diameter x 5.9 cm high at 3.5 kg (3.6 in. diameter x 2.3 in. high at 7.7 lb).

Overall Outer Diameter 3.6 in.
Overall Height 2.3 in.
Sample Capacity - Grinding 5 to 20 mL
Hardness Mohs 8.5 +, Knoop 1400-1800
Typical Sample Size 15 g
Durability Long-wearing
Major Elements W, C, Co
Minor Elements Ta, Ti, Nb
Resistance to Abrasion High
Slurry Grinding No
Comparative Efficiency Very high
For Use With 8530 ShatterBox
