Large Hardened Steel Grinding Container
Large Hardened Steel Grinding Container

8521 - Large Hardened Steel Grinding Container

$3392.00

Part Number: 8521

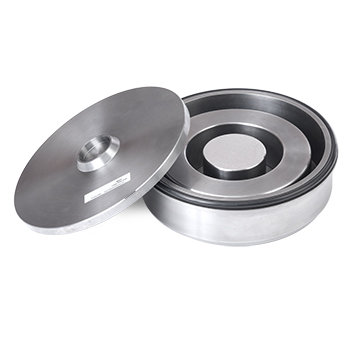

Large grinding container with dish, ring, puck, and lid, all made of 52-100 hardened tool steel.

  • Durable, tough, and suited for general purpose grinding in the 8530 Enclosed Shatterbox®
  • Moderate resistance to abrasion.
  • High durability and efficiency.
  • Suitable for slurry grinding.
  • Nominal volume 650 mL.
  • Recommended grinding load 30 – 100 ml.
  • Typical composition: Major Element – Fe; Minor Elements – Cr, Si, Mn, C
  • Hardness: Mohs 5 1/2 - 6; Rockwell – C 60-65


Use with ShatterBox® Verastile Ring and Puck Mill to pulverizing and mix samples. Dish-shaped grinding container swings in a tight high-speed circle to crush samples to analytical fineness. Typical samples include cements, soils, ceramics, slag, rocks, minerals, ores, pharmaceuticals, sulfur pellets, and dried plant material.



Includes puck, ring, dish with O-ring gasket, and lid. Dimensions are 17.78 cm x 8.2 cm at 13 kg (7 in. diameter x 3.3 in. high at 29 lb). Nominal volume 650 mL, recommended load 30-100 mL.

Overall Outer Diameter 8 in.
Overall Height 3.3 in.
Sample Capacity - Grinding 30 to 100 mL
Hardness Mohs 5.5 to 6, Rockwell C 60-65
Typical Sample Size 90 g
Resistance to Abrasion Moderate
Major Elements Fe
Minor Elements Cr, Si, Mn, C
Durability High
Slurry Grinding Yes
Comparative Efficiency High
For Use With 8530 ShatterBox
