Cole-Parmer® SamplePrep HG-250 Temperature Controlled GenoLyte® and Homogenizer and Chiller Bundle


Part Number: 1200C-CH120

A powerful, compact, temperature-controlled homogenizer in a convenient bundle.

The Temperature Controlled GenoLyte® is an efficient, compact laboratory homogenizer that uses a circulating chiller to maintain sample temperatures between 0 to 10 °C while effectively disrupting cellular materials by horizontally oscillating 2 mL vials. Common samples include seeds, stems, roots, leaves, and animal tissue.

Operation is simple: the vials are secured in the sample cooling chamber, and the lid is closed. The controls are checked for the proper running time, rate, and the start button is pushed. When the run is complete, the lid is lifted and the vials are removed. The digital control panel allows you to set the timer in five-second increments; the timer sounds down in one-second intervals.

The vial holder accommodates three vials that are continuously cooled. A circulating chiller is required for continuous temperature control. The GenoLyte is compatible with Polystat® Circulating Baths or most circulating chiller systems. Purchase chiller and vials separately.

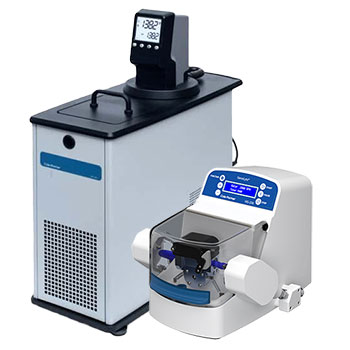

The 1200C-CH120 is bundled with the Cole-Parmer Polystat Standard Refrigerated Circulating Bath. and the (1200C-10) 42 in chiller hose.

  • Accommodates most standard 2 mL vials.
  • Keep an eye on the grinding process with the clear lid for viewing.
  • Cycles can be programmed with rest periods.
  • Ideal for applications involving sample preparation for DNA, RNA and protein extractions.


Specifications represent HG-250 Temperature Controlled GenoLyte® only. For chiller specifications, contact your sales representative.

Model Number HG-250
Type of Mill Bead beater, homogenizer (temperature controlled by an external chiller, sold separately)
Chiller (sold separately) Minimum temperature run setting: -5 °C (23 °F)
Maximum temperature run setting: 10 °C (50 °F)
Compatible Chiller (recommended) Cole-Parmer Polystat Standard (20873-47)
Capacity (3) 2 mL vials (accommodates most standard 3 mL vials)
Display Digital
Grinding Mechanism Grinding balls of stainless steel, silica or zirconia
Motor 1/7 HP, maximum speed 4200 rpm
Clamp Speed Fixed speeds: 2000, 2500, 3000 rpm
Run Timer Maximum 5 minutes
Voltage 115 V/230 V, 60/50 Hz
Power Cord 115 V/60 Hz model: 3-prong grounded plug supplied
230 V/50 Hz model: 2-prong European plug supplied
Dimensions (L x W x H)) 38.0 x 29.2 x 30.0 cm (15.0 x 11.5 x 11.0 in.)
Net Weight 10.9 kg (24 lb)
Operating Conditions For indoor use only at a maximum altitude of 2000 m (6600 ft). Operate at ambient conditions between 5 ºC and 40 ºC (40 °F and 104 ºF) with maximum relative humidity 80% below 31 ºC (88°F). Pollution degree 1: none or only dry, conductive pollution occurs.
CE Approved Yes
