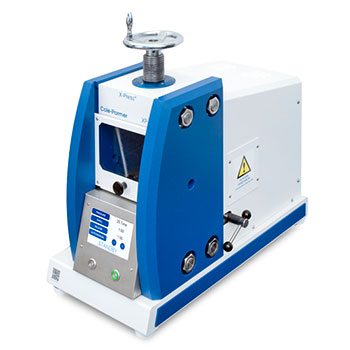

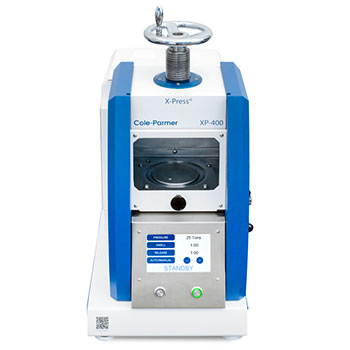

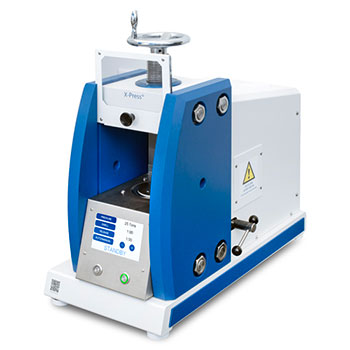

Cole-Parmer® SamplePrep XP-400 X-Press® XRF Pellet Press


Part Number: 3636

The XP-400 X-Press® is a 35-ton (31.8 metric ton) hydraulic laboratory pellet press that accepts 13 mm, 31 mm, 35 mm, and 40 mm pellet die sets. Automatic and fully programmable, this X-Press® is designed for repetitive pressing of sample pellets for XRF, IR, and other analytical techniques.

Typical applications include: pressed pellets for XRF/XRD and IR.

Typical samples include: cement, rocks, minerals, soil, ceramics, and pharmaceuticals.



  • Accepts all Cole-Parmer® SamplePrep evacuable pellet die sets.
  • Can be operated anywhere in the world, even under the most primitive conditions.
  • Economical alternative to motorized presses for labs within a small sample load.

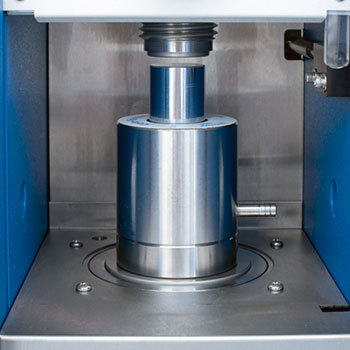

  • Hardened steel buffer plate is engraved with concentric circles and enables easy centering of the die.
  • Manual, hydraulic laboratory press with buffer plate.
  • Rugged, reliable and noted for its extraordinary durability.
  • Upper platen is equipped with a safety shield for operator protection.


The XP-400 X-Press is an automated laboratory press intended for pressing sample pellets for spectroscopy. The press is programmable, so that repetitive pellet preparations may be carried out with a minimum of operator workload and a maximum of uniformity. The X-Press can also be operated manually.

Model Number XP-400
Type of Mill Automated, hydraulic
Force 0 to 35 tons ram pressure
Dwell Time 0 to 10 minutes
Release Time 15 seconds to 10 minutes
Platen Size 8 cm (3.2 in.) diameter
Platen Movement 25 mm (1 in.)
Daylight 5 to 15 cm (2 to 6 in.)
Screw Adjustment 9 cm (3.5 in.)
Motor 1/3 HP
Power 800 VA
Voltage 115 V/60 Hz or 230 V/50 Hz
Dimensions (H x W x D) 50.8 x 33.0 x 57.2 cm (20.0 x 13.2 x 22.5 in.)
Net Weight approximately 65.8 kg (145 lb)
CE Approved Yes
