33 mm Spec-Caps, 1000 pk
33 mm Spec-Caps, 1000 pk

3615M - 33 mm Spec-Caps®, pack of 1000

$400.00

Part Number: 3615M

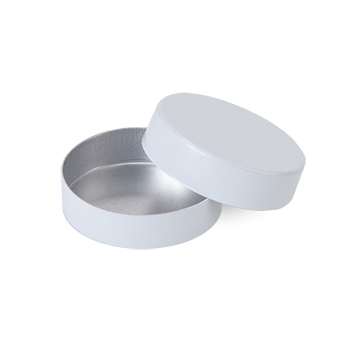

Shallow, thin-walled aluminum cap for reinforcing XRF pellets.

  • Makes sample disks easier to remove from the pellet die.
  • Minimizes contamination during sample handling.
  • Protects the bore of the pellet die from abrasive samples.
  • Painted outer surface prevents seizure in the die and facilitates labeling. Can be used in conjunction with Edge Flaring Tool (part # 3625) to achieve a tighter fit in the pellet die.
  • Reinforces sample disks to resist chipping and breaking.


Aid in the production of pressed powder sample disks for XRF, OES, and other analytical techniques. Shallow, thin-walled aluminum cups form the bottom and sides of the finished pellet to help reinforce XRF pellets.



The 33 mm Spec-Caps® cups are compatible with 35 mm evacuable pellet die set. Use with 35 mm edge flaring tool to achieve a tighter fit in the pellet die.



33 mm wide x 8 mm deep. Produces 35 mm diameter x 5 mm high pellets. Sold in bags of 1000.

Diameter 33 mm
Depth 8 mm
For Use With 3636 X-Press
